USA42-2206 USA42-2306 USA42-2406
Counterfeited timepieces are usually divorce directly into a couple of teams: rolex replica uk muscles really party comprises low-priced identical regarding timepieces. An affordable look-alike observe characteristics a definite identify of your esteemed brand name, even so, is lacking in the structure and also capabilities. replica watches uk Right after lower down definitely the particular omega replica uk steps will come the japanese timepieces which were constructed making use of partitions manufactured in Okazaki, the japanese.
  • NEMA size 17 (42mm square) step motor
  • Drive, controller and I/O built in
  • Four stack lengths
  • Holding torque from 45 to 106 oz in
  • Robust RS485 communication
  • Short lead time
  • Up to 16 units daisy chained
  • Economically priced
  • Simple yet highly functional command language
  • S curve acceleration profiles included
  • No charge Accuriss programming environment for PC's
  • Starter Kits available

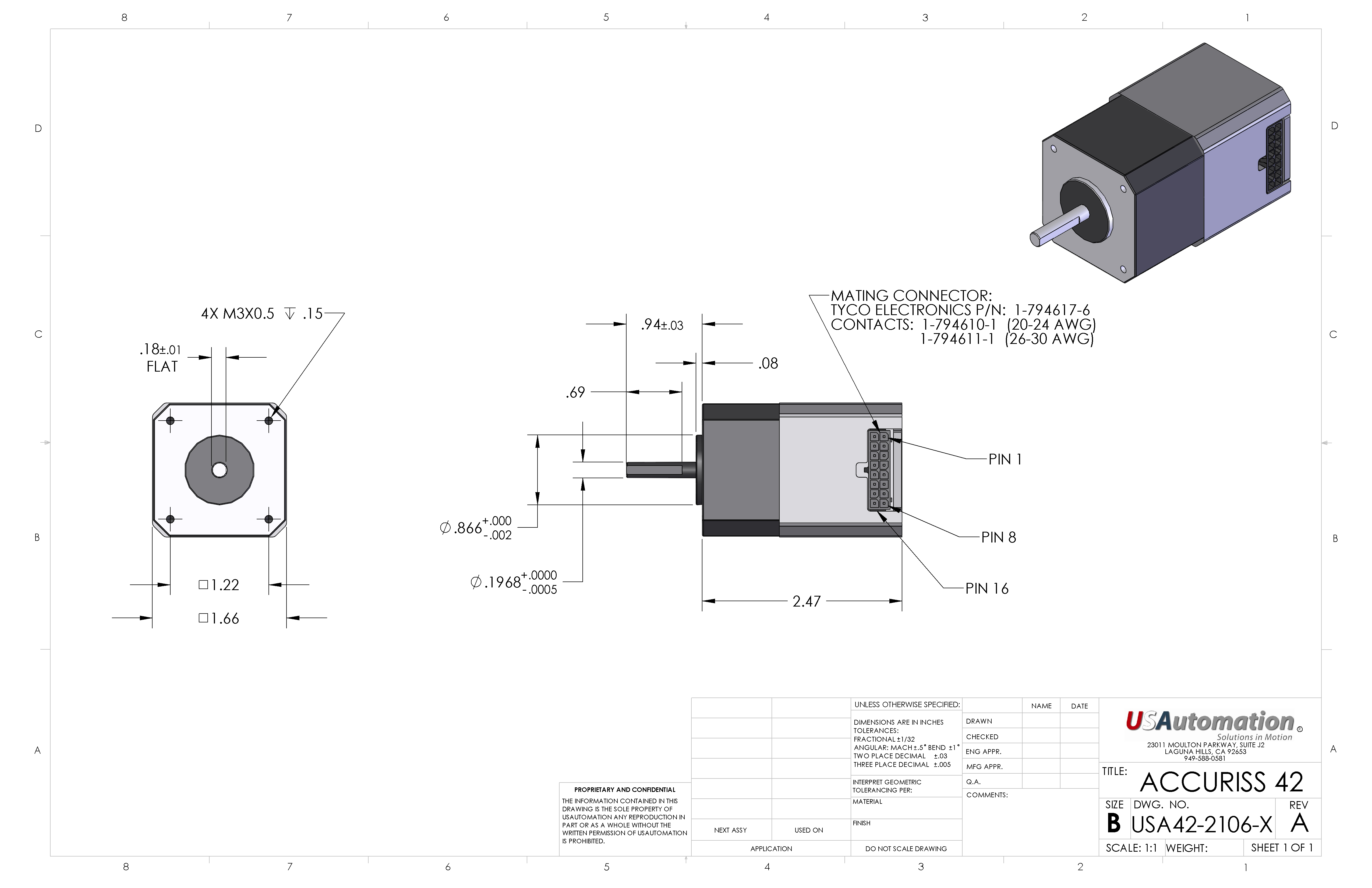

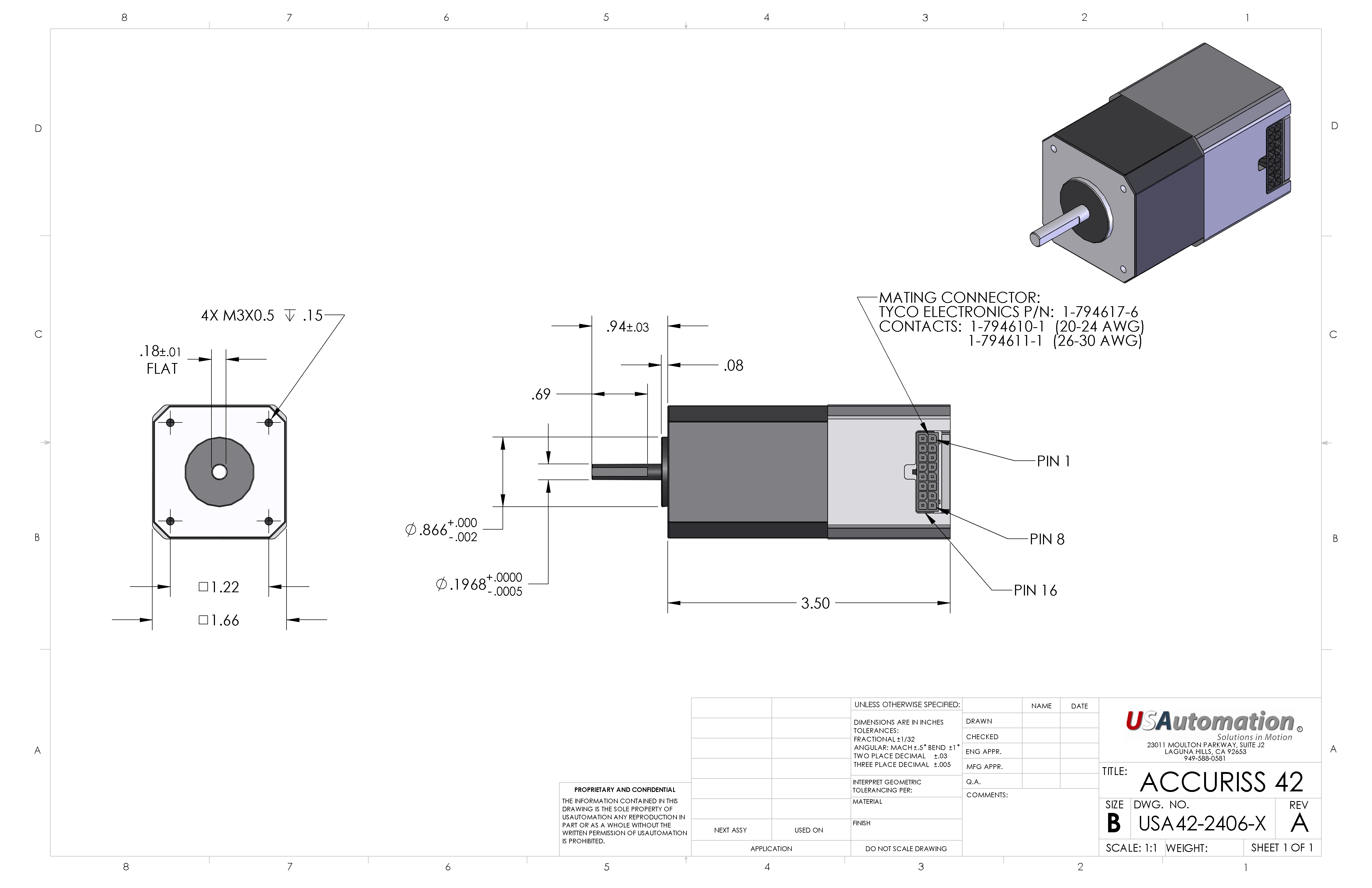

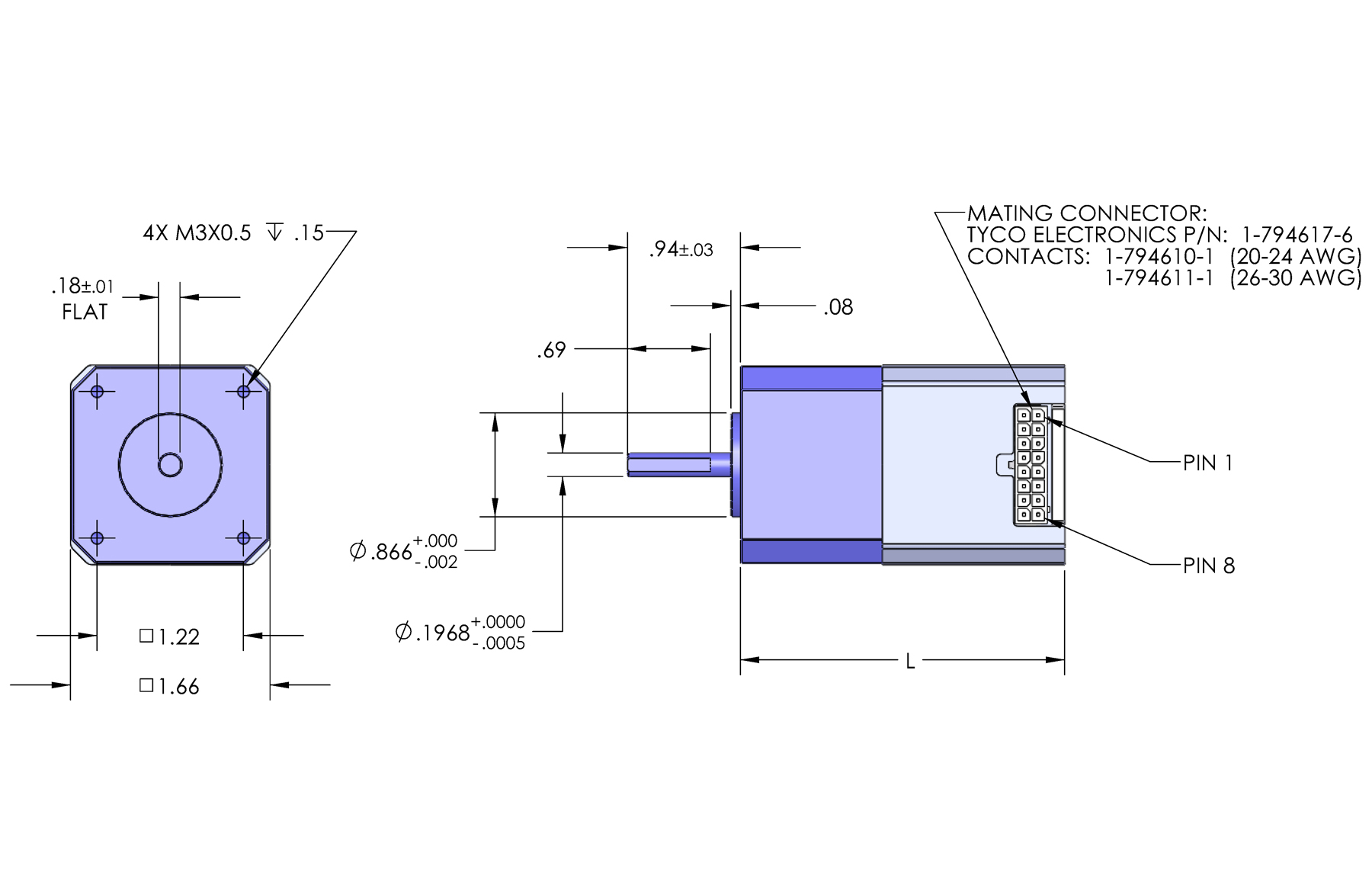

DescriptionProduct DrawingsSpecificationsSpeed / TorqueWiringCAD DrawingsDownloadsVideos

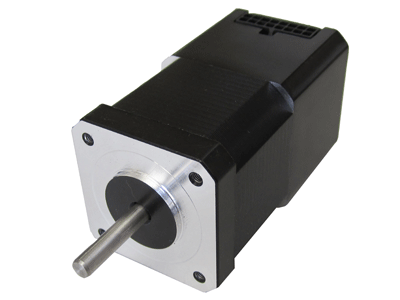

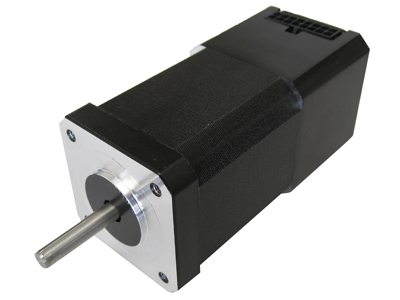

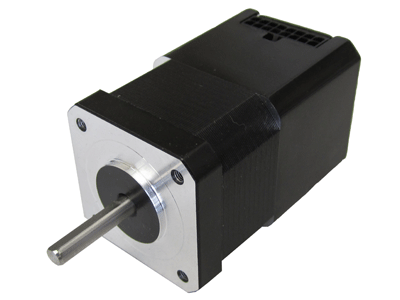

The Accuriss 42, as the name implies, is 42mm square. The product is available in four stack lengths, with holding torques ranging from 45 to 106 oz. in. The Accuriss 42 mounting is the standard NEMA 17 mount. The Accuriss product line can be device addressed with up to 16 devices operating off of a single RS485 interface. The part number calls out the factory preset device address, which is easily changed in the field.

The device drivers for your USB, the Accuriss programming enviornment, the Accuriss 42 User's Manual, along with all CAD files are readily available at no charge on this web site. To provide immediate implementation of the Accuriss 42, USAutomation offers a start up kit which contains, a USB to RS485 converter, a breakout board including I/O devices, a connector for the Accuriss, and a CD with everything you need to get started.
