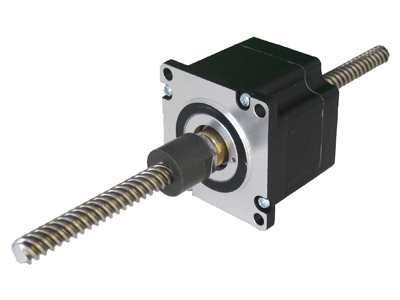

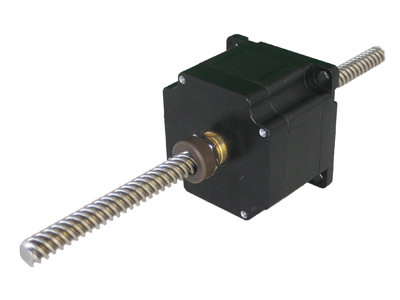

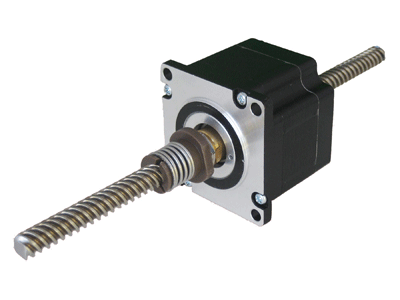

VersaDrive USV23-XXXA VersaDrive USV23-XXXB VersaDrive USV23-XXXS
  • NEMA size 23 (60mm square)
  • Selection of motor windings
  • Selection of screw leads
  • Anti-backlash, self-compensating nut option
  • Standard drive nut option
  • Unique centering bushing option
  • Nuts and bushings can be mounted on either front or back of motor
  • Motor can be full, half or microstepped

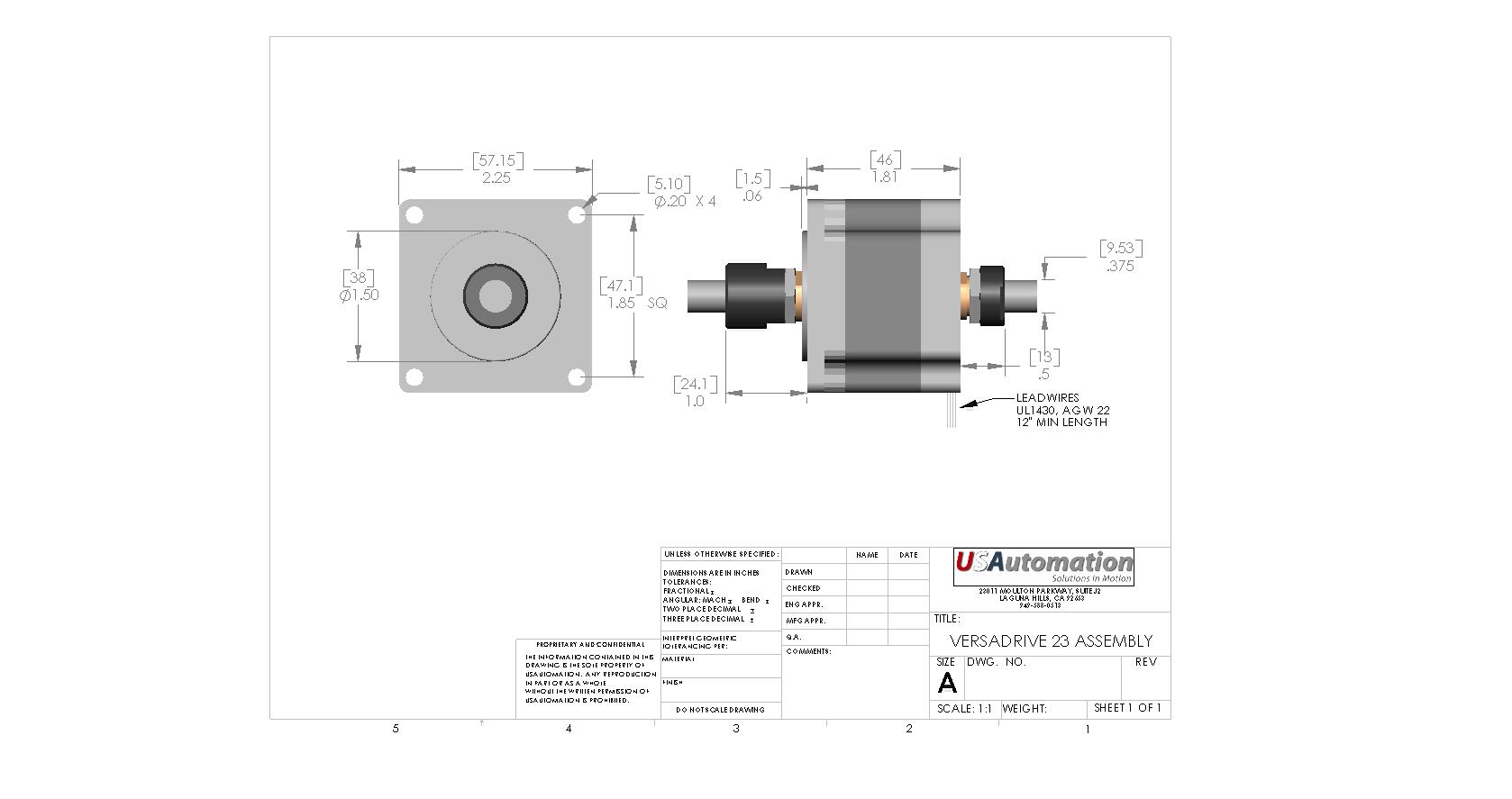

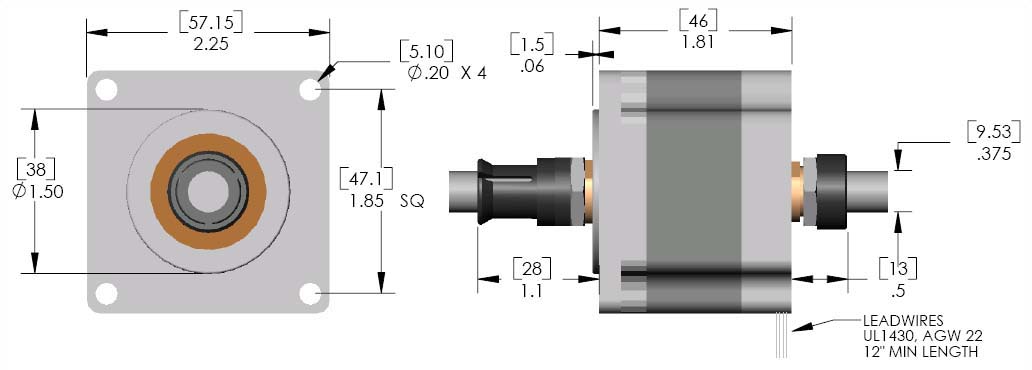

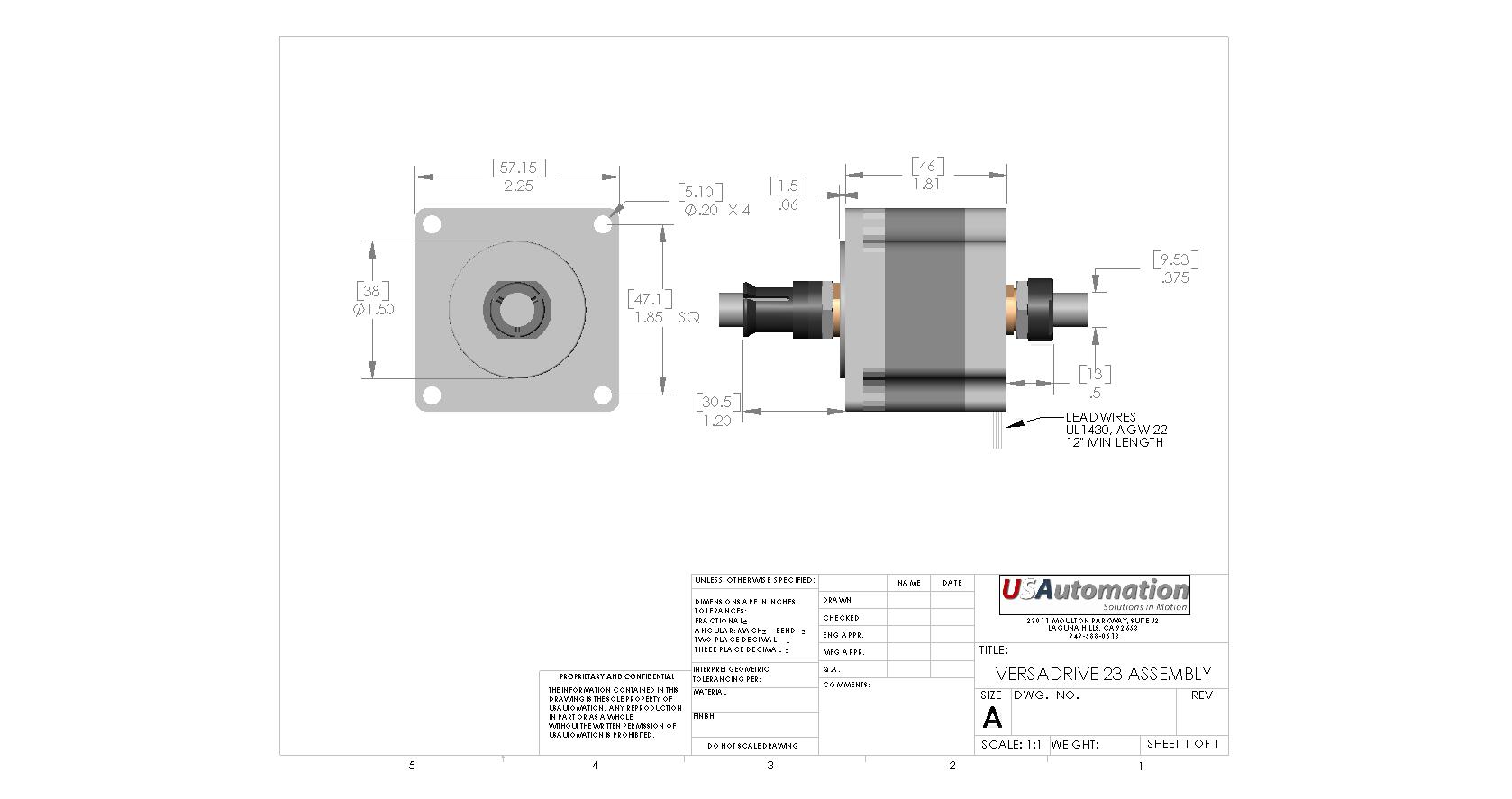

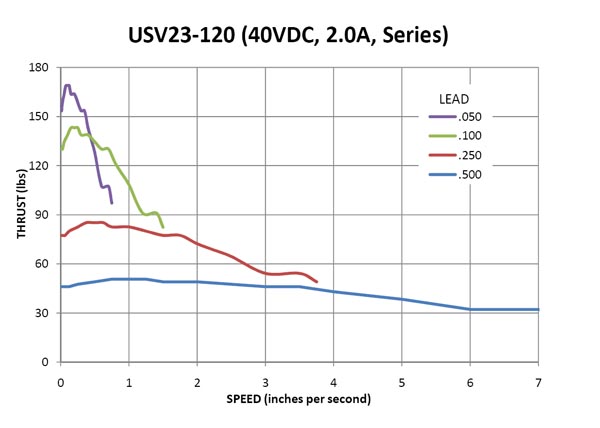

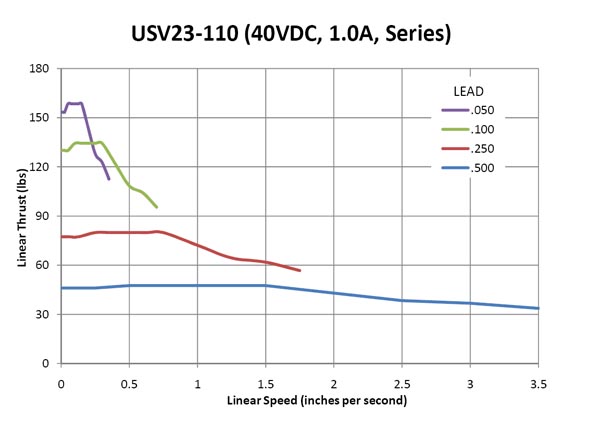

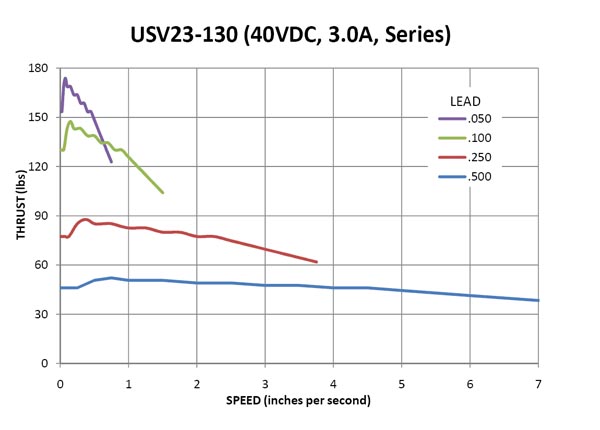

DescriptionProduct DrawingsSpecificationsLinear Travel OptionsSpeed / ForceCAD DrawingsDownloadsOptionsVideos

USAutomation's VersaDrive 23 leadscrew step motors were designed to be the most versatile linear positioning motors on the market. Based on a NEMA 23 hybrid step motor, they are available in thru-screw and fixed screw versions with a variety of drive nut and support bushing options. VersaDrive motors are robust and can be easily configured to solve some of the most difficult application problems. Integration of a leadscrew with a motor saves space, eliminates components, and reduces cost. While many standard configurations are available, custom modifications for OEM customers are welcome.
